1. Rationality of Car Speaker Grille Injection Mold Design
2. Importance of Material Selection
3. Machining and Manufacturing Processes
4. Injection Molding Process Parameters
5. Car Speaker Grille Injection Mold Maintenance and Care
6. Other Factors Affecting Car Speaker Grille Injection Mold Life

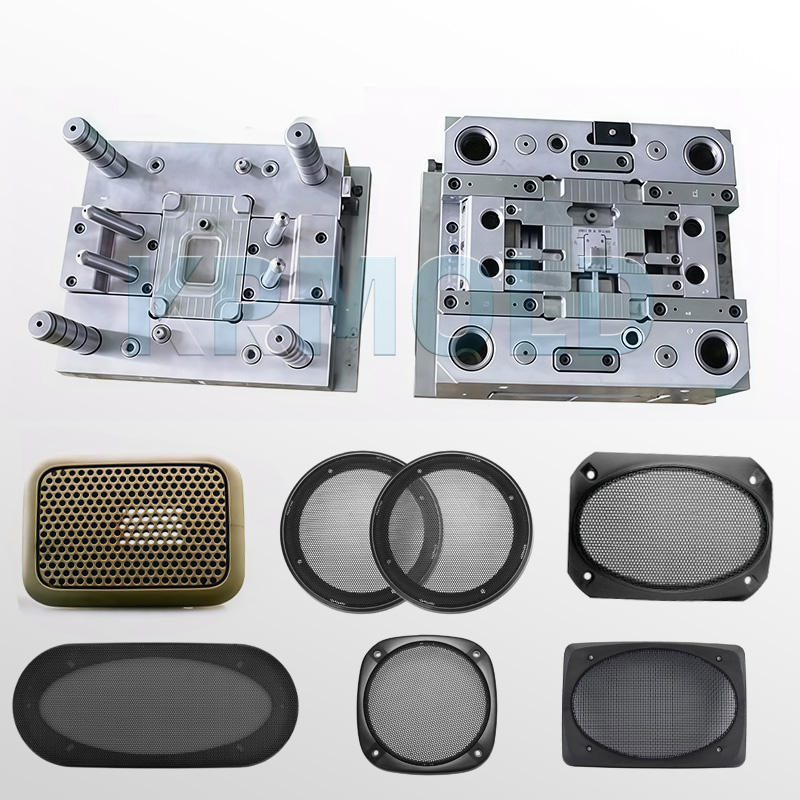

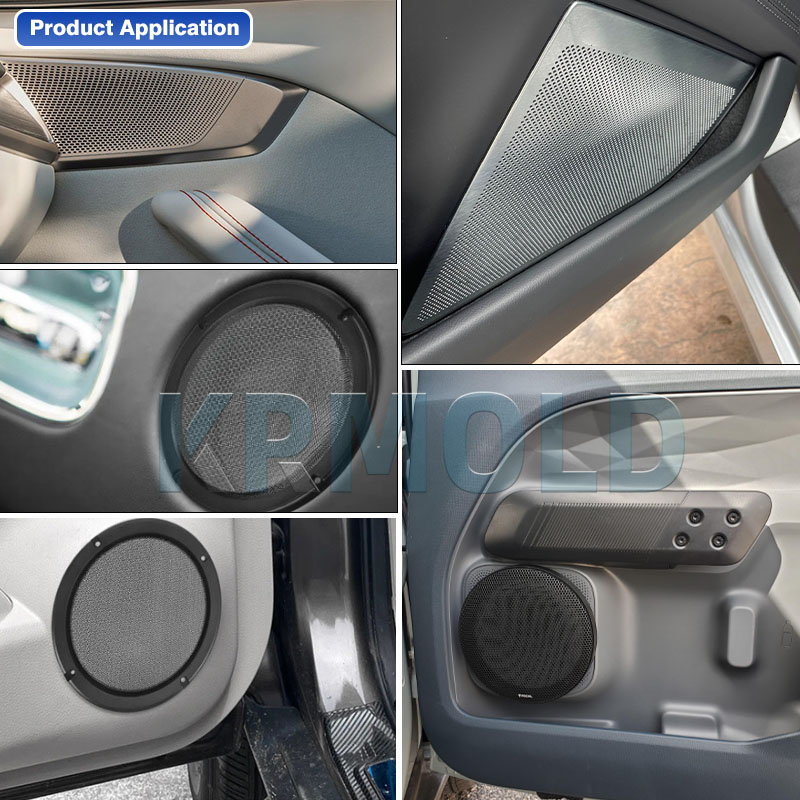

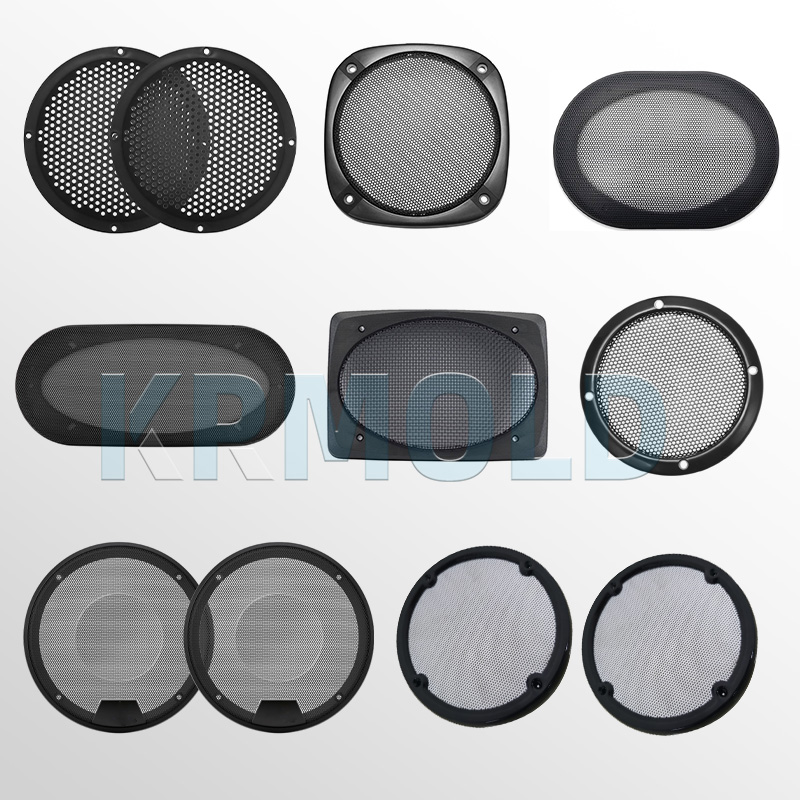

Car speaker grilles, produced by car speaker grille injection molds, are crucial components of automobiles, widely applicable to various types and specifications. Therefore, car speaker grille plastic injection molds specifically designed for producing speaker grilles are particularly important. When selecting and using car speaker grille injection molds, many automakers focus on the number of times a car speaker grille plastic injection mold can be used. This article, by KRMOLD, will provide a detailed analysis of the various factors affecting car speaker grille injection mold lifespan.
Generally, a normal car speaker grille injection mold has a lifespan of 300,000 to 1,000,000 cycles. Many variables affect the real lifespan of a car speaker grille plastic injection mold, including design, material selection, production process, use and care.
1. Rationality of Car Speaker Grille Injection Mold Design
The design of the car speaker grille plastic injection mold directly affects its structural stability and durability. Here are some key design influencing factors:
- Structural Design: Inadequate design of the car speaker grille injection mold's parting surface, gate location, and runner layout can lead to stress concentration during injection molding, causing wear or deformation, directly affecting the car speaker grille plastic injection mold's lifespan. If the design precision of moving parts such as ejector pins and sliders is insufficient, jamming can easily occur, shortening the car speaker grille injection mold's service life.
- Strength and Rigidity: Insufficient wall thickness and support structure design of the car speaker grille plastic injection mold's templates, cores, and cavities can lead to deformation or breakage during high-pressure injection molding. Moreover, the cooling system design must be practical; uneven cooling channel configuration will aggravate mold thermal fatigue, hence impairing material performance.
- Venting Design: Gas accumulation within the chamber brought on by a bad venting system raises pressure and temperature, which burns the car speaker grille injection mold surface and speeds up rusting.
2. Importance of Material Selection
The performance of the mold material is one of the most important factors determining its durability. The following points deserve attention:
- Hardness and Wear Resistance: The scouring action of the molten plastic will wear the mold steel more quickly if its hardness is inadequate (e.g., not meeting the HRC50 standard). Materials with more hardness and greater wear resistance (such as S136 or H13) should be chosen, especially when working with highly corrosive polymers or glass fiber reinforced composites.
- Corrosion Resistance: The material must have great corrosion resistance otherwise oxidation and pitting will ensue while working with halogenated polymers (like PVC) or acidic additives.
- Thermal Strength and Thermal Fatigue Resistance: Under high-temperature conditions, the substance has to have enough thermal strength to stop cracking brought on by multiple thermal expansion and contraction.
3. Machining and Manufacturing Processes
Directly influencing the durability and wear rate of the car speaker grille plastic injection mold are machining accuracy and surface treatment processes:
- Machining Accuracy: Lack of CNC or EDM accuracy will cause excessively big or little gaps between parts, therefore speeding wear. Additionally making the car speaker grille plastic injection mold more prone to corrosion, high surface roughness of the car speaker grille injection mold (e.g., cavities not polished to a mirror finish) raises plastic flow resistance and melt retention.
- Heat Treatment Process: Insufficient quenching temperature or time will lead to uneven material hardness or residual internal stress, making the mold prone to cracking during use.
- Surface Treatment: Nitriding and coating treatments (such as TD treatment, PVD coating, etc.) can effectively improve the surface hardness and wear resistance of the car speaker grille injection mold. Without any surface treatment, the lifespan of a car speaker grille plastic injection mold may be shortened by more than 50%.
4. Injection Molding Process Parameters
Controlling process parameters during production directly affects the stress and wear on the car speaker grille injection mold:
- Injection Pressure and Speed: Excessive mold pressure (e.g., exceeding 150 MPa) increases expansion stress in the cavity, leading to plastic deformation of the car speaker grille plastic injection mold. High-speed injection intensifies the scouring of the mold runner by the melt.
- Temperature Control: Excessively high mold temperatures accelerate material softening and reduce hardness; insufficient cooling prolongs the molding cycle and repeatedly causes thermal fatigue in the car speaker grille injection mold.
- Molding Material Characteristics: Higher filler content (such as glass fiber or minerals) in the plastic used will result in more significant mold wear. Some corrosive plastics (such as nylon containing glass fiber) accelerate surface erosion.
5. Car Speaker Grille Injection Mold Maintenance and Care
Regular maintenance is crucial for extending car speaker grille plastic injection mold life:
- Cleaning and Lubrication: Failure to promptly clean residual plastic debris or corrosive substances from the cavity can lead to surface rust; lack of lubrication in moving parts accelerates wear.
- Component Inspection and Replacement: Failure to replace worn parts such as guide pillars, guide sleeves, and springs in a timely manner can lead to decreased mold precision and subsequent damage.
- Storage Environment: Car speaker grille injection molds stored in humid environments for extended periods are prone to rust. Therefore, it is recommended to apply rust inhibitors and store them in a dry place. Outdoor storage due to drastic temperature changes can also cause material embrittlement.
6. Other Factors Affecting Car Speaker Grille Injection Mold Life
- Production Batch and Usage Frequency: Continuous high-load production over long periods accelerates mold wear. Properly scheduled downtime maintenance can effectively extend car speaker grille plastic injection mold life.
- Operator Skills: Improper operation (such as forced demolding or failure to preheat the car speaker grille injection mold) can cause mold collisions or overloads, damaging the car speaker grille plastic injection mold.
- Mold Repair Process: The quality of repair processes such as welding or laser cladding after mold wear or damage directly affects the car speaker grille injection mold's future lifespan. Poor repairs may lead to further damage.
Each of the above aspects is crucial. Problems in any one aspect can affect the lifespan of the car speaker grille plastic injection mold. Therefore, even car speaker grille injection molds of the same type can have vastly different lifespans, sometimes differing by nearly tenfold.
If you would like to learn more about car speaker grille plastic injection molds, please feel free to contact KRMOLD!
