+86-13702855825|The proper functioning of a car's cooling system is crucial for the engine. Firstly, it lowers the engine's operating temperature, preventing damage caused by overheating; secondly, a properly functioning cooling system reduces emissions, minimizing environmental pollution; furthermore, it improves engine efficiency, reduces fuel consumption, and thus lowers the owner's operating costs. In this complex system, the car fan radiator is one of the core components, responsible for dissipating the heat absorbed by the coolant into the air. Therefore, optimizing the production equipment for fan radiators, especially automotive fan radiator mould, is of paramount importance.

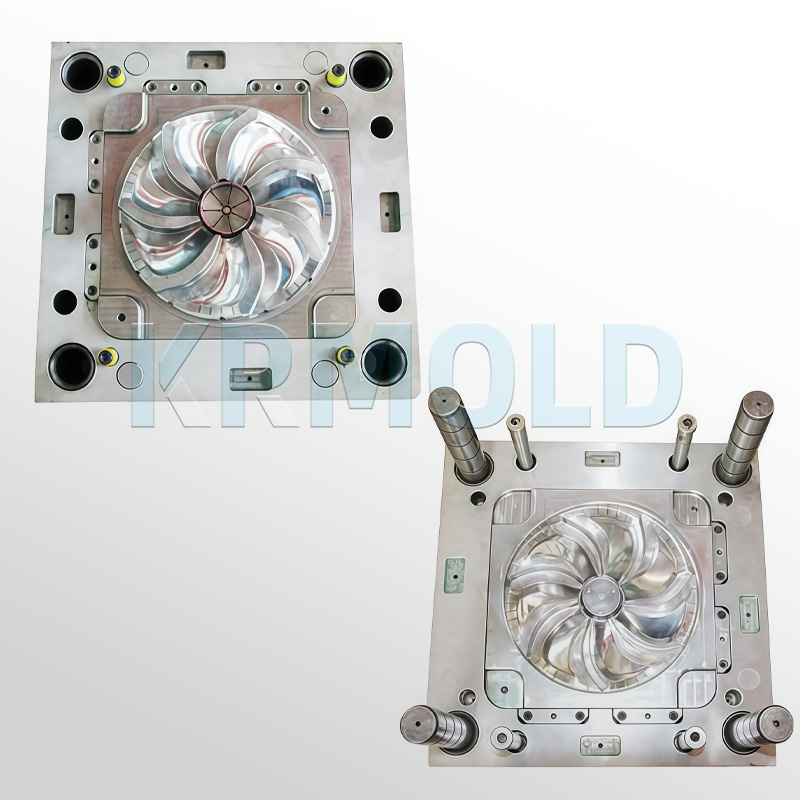

1. Introduction to Automotive Fan Radiator Mould
With the advancement of technology and the rapid development of the automotive industry, the increasing global purchasing power for automobiles has led to a growing demand for car fan radiators. High-quality car radiator fan blade plastic mould can efficiently produce a large number of high-precision plastic products and can be customized according to project requirements, ensuring that the final product matches different vehicle specifications. Such automotive fan radiator mould not only improve production efficiency but also help ensure product consistency and quality.
2. The Role of Car Radiator Fan Blade Plastic Mould in Vehicle Manufacturing
2.1 Precise shaping
-Design and Production: The design of the automotive fan radiator mould directly affects the shape and size of the fan radiator. High-precision car radiator fan blade plastic mould ensure that each radiator component meets design specifications and performance requirements.
-Realization of Complex Structures: Fan radiators typically include complex channel and fin designs. High-quality automotive fan radiator mould can precisely shape these complex structures, thereby improving heat dissipation efficiency. For example, the shape and spacing of the fins directly affect the heat dissipation effect; a good car radiator fan blade plastic mould design can maximize this efficiency.
2.2 Improved production efficiency
-Mass Production: Using molds enables efficient mass production, significantly shortening production cycles. Producing a high-quality automotive fan radiator mould once allows for stable production over multiple uses, greatly improving production efficiency and cost-effectiveness.
-Automation Compatibility: Modern car radiator fan blade plastic mould designs often consider the requirements of automated production, making the automotive fan radiator mould more compatible with automated production lines, further optimizing the production process. This not only improves operational efficiency but also reduces errors caused by human operation.
2.3 Cost control
-Reduced Material Waste: Excellent car radiator fan blade plastic mould design can reduce material waste during the production process, lowering manufacturing costs. For example, by optimizing the layout of the radiator, the amount of material required can be reduced without affecting its performance.
-Improving Yield Rate: High-quality automotive fan radiator mould can significantly reduce the defect rate, helping companies effectively reduce production costs and improve economic efficiency.
2.4 Quality assurance
-Consistency: The car radiator fan blade plastic mould ensures that each fan radiator maintains consistent quality and performance, reducing the impact of production process fluctuations on quality. For example, precise automotive fan radiator mould design allows for consistent monitoring of the product, reducing errors caused by human factors.
-Inspection and Adjustment: The car radiator fan blade plastic mould design can include reserved inspection ports and adjustment functions, ensuring that quality checks and adjustments can be performed at any time during the production process, thereby improving product quality. This design optimization allows for quick response to changes in the production process, ensuring smooth subsequent production.
3. Design Process of Automotive Fan Radiator Mould
3.1 Design requirements analysis
The first step in designing car radiator fan blade plastic mould is to conduct a detailed requirements analysis to determine the expected quality standards and production volume. This stage of analysis will directly affect subsequent design development and material procurement.

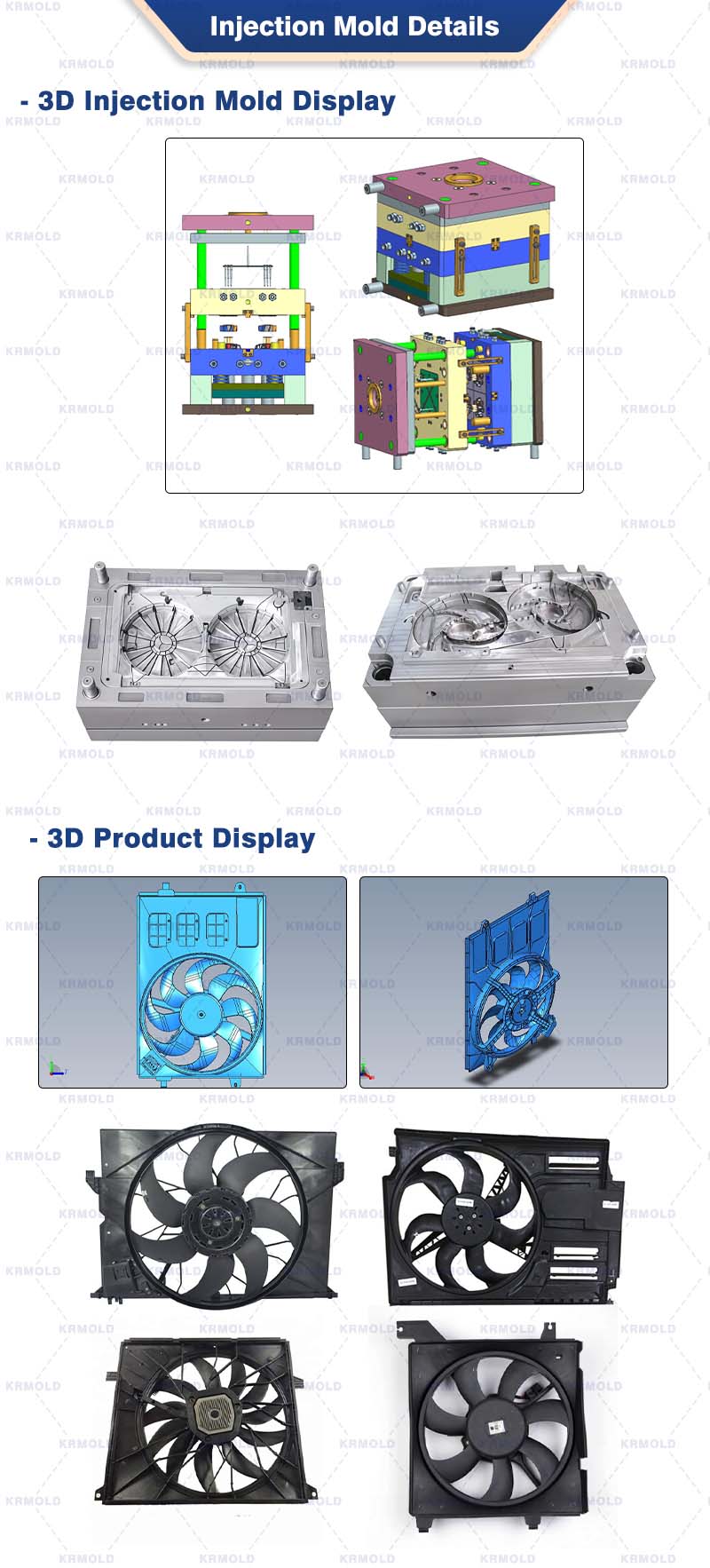

3.2 Application of CAD in Automotive Fan Radiator Mould Design
Using CAD technology can improve the accuracy and efficiency of the design. Commonly used software such as SolidWorks and AutoCAD can provide various simulations for car radiator fan blade plastic mould design to ensure the feasibility and effectiveness of the design and simplify subsequent production processes.
3.3 Mold flow analysis and optimization
Mold flow analysis is an indispensable part of automotive fan radiator mould design. It helps engineers predict the flow state of materials in the car radiator fan blade plastic mould, identify potential problems early, and optimize the design to ensure the effectiveness and production stability of the automotive fan radiator mould.
3.4 Prototyping and testing
Before actual production, verifying the feasibility of the design through prototyping is crucial. This process can be achieved through rapid prototyping technologies such as 3D printing, allowing for testing the advantages and disadvantages of the car radiator fan blade plastic mould design in a short time to ensure the rationality of the final molding.
4. Automotive Fan Radiator Mould Manufacturing and Processing Process
4.1 Material selection
Choosing the right mold material is a critical step in the manufacturing process. Commonly used mold materials include steel and aluminum, each with its own advantages and disadvantages. For example, steel has strong wear resistance but is difficult to process; while aluminum is relatively lightweight and easy to process, but its wear resistance is relatively poor.
4.2 Processing technology
The processing technologies used in car radiator fan blade plastic mould manufacturing usually include milling, electrical discharge machining, grinding, etc. These technologies enable high-precision automotive fan radiator mould manufacturing, ensuring the tight fit and stability of the finished product.
4.3 Surface treatment
Surface treatment of the car radiator fan blade plastic mould is also crucial. Appropriate surface treatment techniques can improve the durability and surface quality of the automotive fan radiator mould. Processes such as hardening and polishing enhance the performance of the car radiator fan blade plastic mould, thereby extending their service life.
4.4 Quality control
Implementing strict quality control during the automotive fan radiator mould manufacturing process is key to ensuring the quality of the final product. Inspection standards and methods should include dimensional inspection and performance testing to ensure that every car radiator fan blade plastic mould meets the design requirements.
